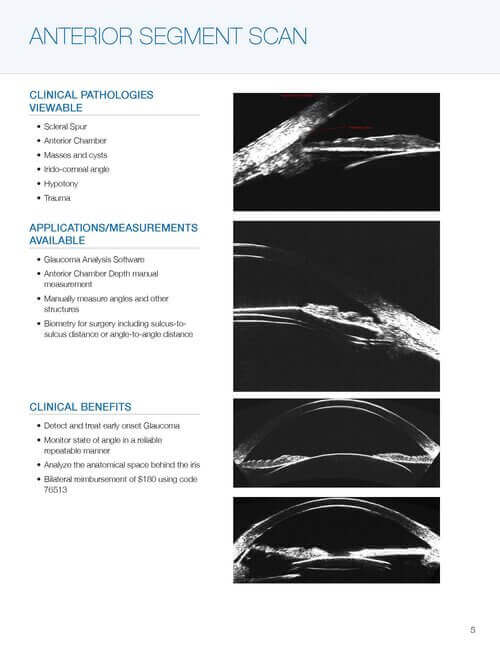

Anterior Segment Ophthalmic Ultrasound Imaging and Biometry
The ArcScan Insight® 100 images provide an unmatched ability to measure the entire anterior chamber using ophthalmic ultrasound. The London Vision Clinic stated, “The most advanced method for ICL sizing is to use the…Insight 100 VHF digital ultrasound scanner to directly measure the area inside the eye behind the iris where the lens will be sitting.” The ArcScan Insight® 100 is an ophthalmic instrument that provides biometry for pre-operative and post-operative IOL, premium IOL, and ICL procedures. Insight 100 imaging adds another measure for the clinic to evaluate precise permanent lens position, tilt, and vault volume.

Phakic Lens Sizing
- The ArcScan Insight® 100 images have been described as HD quality as compared to analog systems.

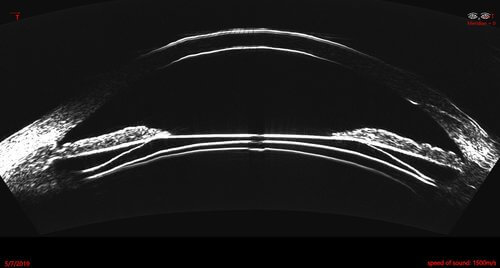

- Each pre-operative imaging set includes 7 meridians in the area of lens footplate location.
- These images aid in surgical planning by showing precise lateral space and the presence of pathologies, including a ciliary cyst.
- Applying a recognized nomogram to precise scanning mean measurements will help determine implantable lens sizing.

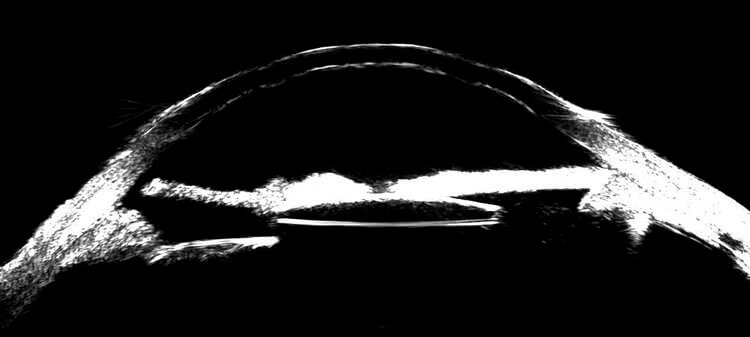

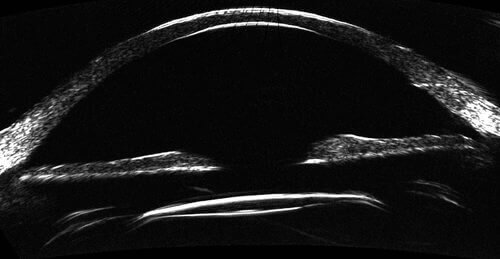

- Post-operative ophthalmic ultrasound imaging over time can determine the lens vault and proximity to the crystalline lens.
Sulcus-to-sulcus measurements have been a common practice in ICL sizing; however, regardless of these exterior measurements, “At least 25% of eyes will still end up with >0.5mm error, in terms of predicting the sulcus,” stated Dr. Dan Reinstein.
Post Operative ICL Implantation

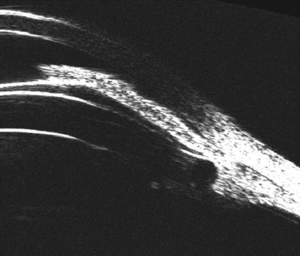

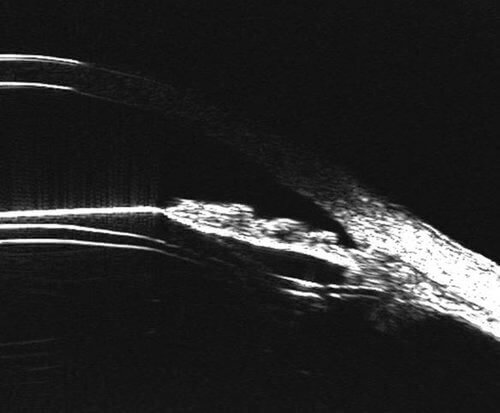

Utilizing The ArcScan Insight® 100 for post-op ophthalmic ultrasound imaging of implanted lenses can reveal potential causal factors of improper lens positioning. In this image, the ICL footplate sits atop a ciliary body cyst. Rotation of the lens resulted in proper alignment and positioning. The Insight 100 provides high image resolution and the ability to see behind the iris. This insight can aid the surgeon in therapy planning.

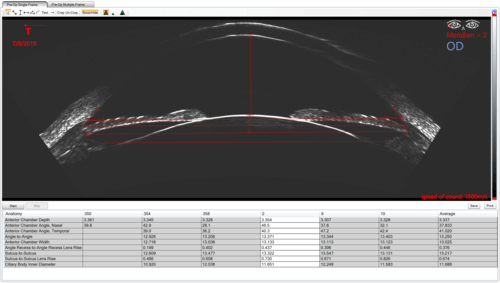

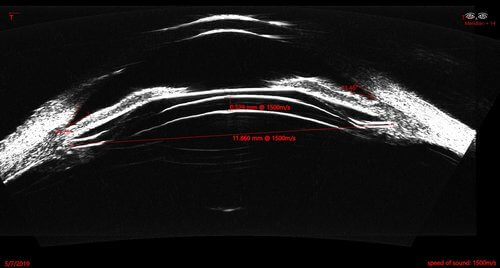

Operators can take pre- and post-operative measurements using caliper tools within the Insight 100 to provide comparative measurements and support assessments.
Tool to Determine ICL Sizing
This free website was created by London Vision Clinic
Phakic lenses are surgically implanted in the posterior chamber, occupying the slit-like potential space between the iris’s posterior surface and the crystalline lens’s anterior surface. Due to the small space here, and the need for aqueous humor to pass through the pupil space, it is critical to measure this area where the lens will be implanted pre-operatively. Only ophthalmic ultrasound imaging can accurately image behind the iris. The ArcScan Insight® 100’s measuring calipers provide precision to within 0.12mm laterally behind the iris.
